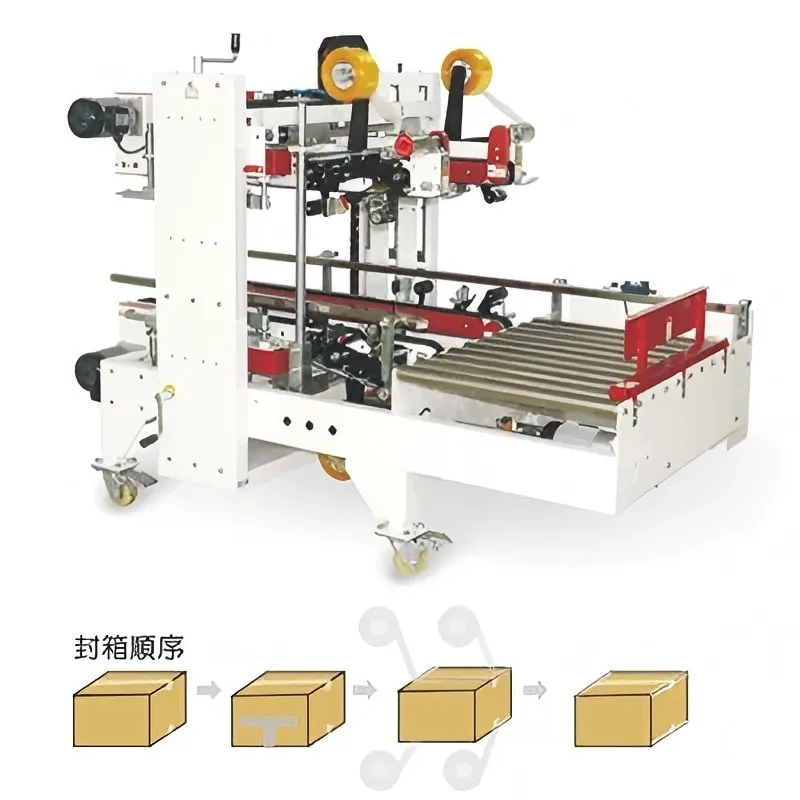

Semi-Automatic Carton Edge Sealing Machine L Type CCP-FG500L: Complete Industry Guide

1. Introduction

The Semi-Automatic Carton Edge Sealing Machine L Type CCP-FG500L is an advanced packaging solution designed for precise edge sealing of cartons in medium-volume production environments. Combining high efficiency, durability, and ease of operation, it provides consistent sealing quality while reducing manual labor requirements.

Industries Served: Logistics, e-commerce fulfillment centers, food and beverage, electronics, pharmaceuticals, and consumer goods packaging.

2. Definition and Function

The CCP-FG500L automates the process of folding and sealing carton edges with precision. The “L Type” configuration allows operators to access cartons easily from the side while maintaining secure sealing.

Core Functions:

• Semi-automatic edge folding and sealing

• Adjustable carton guides for various dimensions

• Hotmelt or adhesive sealing head for consistent closure

• Integration with conveyors for continuous production

• Simple operator interface for precise control

3. Advantages of CCP-FG500L

4. Technical Specifications

5. Working Principle

1. Carton Loading: Operator manually places cartons on the L-type table.

2. Edge Folding: The machine folds and aligns carton edges automatically.

3. Hotmelt Adhesive Sealing: The adhesive head applies hotmelt or glue along the edges.

4. Carton Discharge: Sealed cartons are removed for packaging, palletizing, or shipping.

This semi-automatic approach combines precision with flexibility for medium-scale production.

6. Core Components

• Sealing Head: Precise adhesive application for reliable edge sealing

• Adjustable Guides: Accommodates various carton sizes and shapes

• Conveyor Table: Smooth transport of cartons for consistent operation

• Control Panel: Simple interface for adjusting speed, adhesive, and carton positioning

• Safety Guards: Protect operators from moving parts

• Industrial Frame: Ensures durability and stability during operation

7. Industry Applications

Logistics and Warehousing

Enhances packing speed for shipment processing, ensuring consistent carton edge sealing.

E-Commerce Fulfillment

Supports high-volume packaging for online retailers, improving efficiency and reducing labor costs.

Food and Beverage Industry

Hygienic sealing of cartons for beverages, snacks, and other packaged foods.

Electronics and Consumer Goods

Reliable sealing for protective packaging of electronic devices and consumer products.

Pharmaceutical Packaging

Secure sealing for pharmaceutical cartons requiring regulatory compliance and high precision.

8. Installation and Integration

Installation Requirements:

• Level concrete floor

• Stable electrical supply (220–380V)

• Sufficient workspace for operator access

• Optional integration with upstream or downstream conveyors

Setup Tips:

• Level the machine base and secure bolts

• Connect electrical supply according to specifications

• Adjust carton guides for carton dimensions

• Train operators in safety and operation

9. Safety Features

• Emergency stop buttons for immediate shutdown

• Protective panels and guards to prevent operator injury

• Sensors to detect carton misalignment or jams

• Audible alarms for operational issues

Operator Recommendations:

• Do not reach into moving parts

• Disconnect power before maintenance

• Regularly inspect conveyor and adhesive head

10. Maintenance Guidelines

11. Common Issues and Troubleshooting

12. Comparison With Other Machines

The Semi-Automatic Carton Edge Sealing Machine L Type CCP-FG500L is a reliable solution for medium-volume industrial packaging. Its semi-automatic operation reduces labor costs while ensuring consistent edge sealing. With adjustable guides, durable construction, and safety features, it is suitable for logistics, e-commerce, food, pharmaceutical, and consumer goods packaging.
