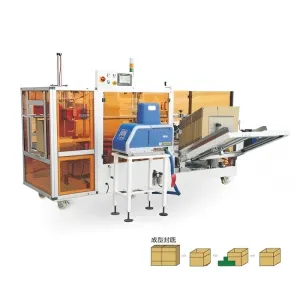

Hotmelt Carton Erector CCP-K20TH
Information
Carton size: (L)250-450*(W)200-400* (H)150-350mm
Tape width: (W) 48/60/72mm*(L)800m/1000mm, OPP (alternative use)
Voltage: 220V, 1∮, 50HZ or specified by customers
Power: 240W (customizable)
Working speed: 8-10ctns/min
Belts: (W)48mm
Table height: 625mm
Applicable pressure: 5kg.f/cm²-100nl/min
Machine size: (L)2000 (W)1900 (H)1700mm
Product Encyclopedia
Hotmelt Carton Erector CCP-K20TH: Complete Guide to Automatic Carton Forming and Sealing Solutions
The Hotmelt Carton Erector CCP-K20TH is a highly efficient and automated packaging solution designed to streamline carton forming and bottom sealing processes in modern production lines. As industries continue to move toward automation and intelligent manufacturing, the demand for reliable carton erecting equipment has increased significantly.
The Hotmelt Carton Erector CCP-K20TH integrates advanced hot melt adhesive technology with precise mechanical engineering, enabling consistent carton forming, accurate sealing, and improved production efficiency. It is widely used across industries such as food processing, pharmaceuticals, e-commerce logistics, electronics, and consumer goods manufacturing.
What is a Hotmelt Carton Erector CCP-K20TH
A Hotmelt Carton Erector CCP-K20TH is an automated machine that takes flat cartons, erects them into shape, and seals the bottom flaps using hot melt adhesive. This process replaces manual carton forming and taping, significantly improving speed, consistency, and cost efficiency.
Key Functions
Automatic carton pickup from magazine
Precise carton forming and shaping
Bottom flap folding
Hot melt adhesive application
Firm sealing and output transfer
Core Features of Hotmelt Carton Erector CCP-K20TH
1. High-Speed Carton Forming
The Hotmelt Carton Erector CCP-K20TH is engineered for high-speed operations, allowing businesses to handle large-scale packaging requirements efficiently.
2. Advanced Hot Melt Adhesive System
The integration of a hot melt system ensures:
Strong bonding strength
Clean sealing appearance
Reduced material waste
3. Stable and Reliable Performance
With precision components and a robust structure, the Hotmelt Carton Erector CCP-K20TH delivers consistent performance even in demanding industrial environments.
4. Flexible Carton Size Compatibility
This machine supports a wide range of carton sizes, making it adaptable for different packaging requirements.
5. Easy Operation and Maintenance
User-friendly interfaces and modular design simplify operation and reduce maintenance time.
Advantages of Hotmelt Carton Erector CCP-K20TH
| Advantage | Description |
|---|---|
| Increased Efficiency | Automates carton forming and sealing to improve production speed |
| Labor Cost Reduction | Minimizes manual intervention and workforce requirements |
| Consistent Quality | Ensures uniform carton shape and sealing strength |
| Strong Adhesion | Hot melt technology provides durable and secure sealing |
| Space Optimization | Compact design saves factory floor space |
| Energy Efficiency | Optimized system reduces energy consumption |
Working Principle of Hotmelt Carton Erector CCP-K20TH
The working process of the Hotmelt Carton Erector CCP-K20TH involves multiple coordinated steps:
Carton Loading
Flat cartons are placed in the storage magazine.Carton Picking
A suction system picks up individual cartons.Carton Forming
The machine opens and shapes the carton into a box structure.Bottom Folding
Bottom flaps are automatically folded in sequence.Hot Melt Application
Adhesive is applied precisely to the flaps.Sealing Process
The carton bottom is sealed firmly with pressure.Output Transfer
Finished cartons are conveyed to the next stage.
Technical Specifications of Hotmelt Carton Erector CCP-K20TH
Below is a general specification table for reference:
| Parameter | Specification |
|---|---|
| Model | Hotmelt Carton Erector CCP-K20TH |
| Production Capacity | 10 to 20 cartons per minute |
| Carton Size Range | L 250 to 600 mm W 150 to 400 mm H 100 to 400 mm |
| Power Supply | 220V 50Hz |
| Air Pressure | 0.6 to 0.8 MPa |
| Adhesive Type | Hot melt adhesive |
| Machine Dimensions | Approx 2000 x 1900 x 1500 mm |
| Weight | Approx 600 to 800 kg |
Applications of Hotmelt Carton Erector CCP-K20TH
The Hotmelt Carton Erector CCP-K20TH is suitable for various industries:
Food and Beverage Industry
Used for packaging snacks, beverages, frozen food, and dairy products.
E-commerce and Logistics
Handles high-volume carton preparation for shipping and distribution.
Pharmaceutical Industry
Ensures hygienic and secure carton packaging for medical products.
Electronics Industry
Protects delicate components during transportation.
Consumer Goods
Supports packaging of daily necessities and retail products.
Comparison: Hot Melt Sealing vs Tape Sealing
| Feature | Hot Melt Sealing | Tape Sealing |
|---|---|---|
| Sealing Strength | High | Medium |
| Appearance | Clean and professional | Visible tape lines |
| Cost Efficiency | Lower long-term cost | Higher consumable cost |
| Automation Compatibility | Excellent | Good |
| Environmental Impact | Lower waste | More waste generated |
Key Components of Hotmelt Carton Erector CCP-K20TH
Frame Structure
Provides stability and durability for long-term operation.
Carton Magazine
Stores flat cartons for continuous feeding.
Suction System
Ensures accurate carton picking.
Folding Mechanism
Handles precise flap folding.
Hot Melt Glue System
Applies adhesive with precision.
Conveyor System
Transfers cartons smoothly to the next process.
Installation Requirements
To ensure optimal performance of the Hotmelt Carton Erector CCP-K20TH, proper installation is essential:
Stable and level ground
Adequate power supply
Compressed air system
Proper ventilation
Safe operating space
Maintenance Tips for Hotmelt Carton Erector CCP-K20TH
Regular maintenance improves machine lifespan and performance:
Daily Maintenance
Clean dust and debris
Check adhesive system
Inspect moving parts
Weekly Maintenance
Lubricate mechanical components
Inspect sensors and wiring
Monthly Maintenance
Check system calibration
Inspect wear parts
How to Choose the Right Hotmelt Carton Erector CCP-K20TH
When selecting a Hotmelt Carton Erector CCP-K20TH, consider the following factors:
Production Capacity
Choose a machine that matches your output requirements.
Carton Size Range
Ensure compatibility with your packaging sizes.
Automation Level
Evaluate integration with existing production lines.
Energy Consumption
Look for energy-efficient models.
Maintenance Support
Ensure easy maintenance and spare parts availability.
Future Trends in Carton Erecting Technology
The Hotmelt Carton Erector CCP-K20TH represents a step toward smarter packaging systems. Future developments include:
AI-driven automation
IoT-enabled monitoring
Energy-saving innovations
Compact modular designs
Fully integrated packaging lines
The Hotmelt Carton Erector CCP-K20TH is an essential piece of equipment for modern packaging operations. By combining automation, precision, and hot melt adhesive technology, it significantly enhances productivity, reduces labor costs, and ensures consistent packaging quality.
Whether used in food processing, logistics, or industrial manufacturing, the Hotmelt Carton Erector CCP-K20TH provides a reliable and scalable solution for businesses seeking efficient carton forming and sealing systems.
