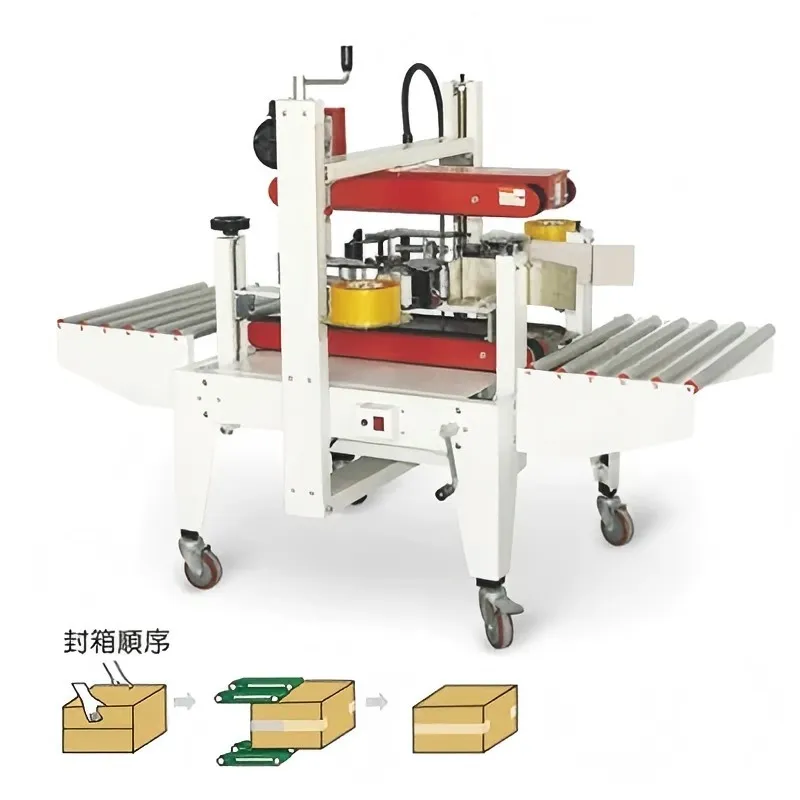

Left and Right Side Carton Sealing Machine CCP-FS500
Information
Carton size: (L)200-∞*(W)250-500* (H)95-450mm
Tape width: (W) 48/60/72mm*(L)800m/1000mm, OPP (alternative use)
Voltage: 220V, 1∮, 50HZ or specified by customers
Power: 240W
Belt speed: 18-20m/min
Belts: (W)48mm
Table height: 600-750mm (adjustable)
Machine size: (L)856 (W)1500 (H)1091mm
Mechanical configuration:
1.Motor: GPG (Made in Taiwan)
2.Crimping switch: KACON (Made in Korea)
3.Blade: Made in China
Product Encyclopedia
Left and Right Side Carton Sealing Machine CCP-FS500: Comprehensive Industry Guide
1. Introduction
The Left and Right Side Carton Sealing Machine CCP-FS500 is a fully automated industrial packaging solution designed to seal cartons efficiently from both left and right sides. This machine delivers uniform adhesive tape sealing on cartons of various sizes, improving productivity and reducing manual labor. It is widely adopted in logistics, e-commerce, food and beverage, consumer goods, and electronics industries.
In modern production environments, consistent carton sealing is essential for maintaining product integrity during storage and transportation. The CCP-FS500 ensures professional-grade sealing, high operational efficiency, and seamless integration with packaging lines.
2. Definition and Function
The Left and Right Side Carton Sealing Machine CCP-FS500 is an automated machine that applies adhesive tape to both the left and right flaps of a carton. Unlike semi-automatic machines, the CCP-FS500 requires minimal manual intervention, allowing continuous high-speed operation.
Key Functions Include:
Automatic sealing of left and right carton flaps
Adjustable carton guides for multiple carton sizes
Integration with conveyors for smooth packaging flow
PLC-based control system for precise operations
The CCP-FS500 improves sealing quality, reduces labor costs, and enhances operational reliability, making it a cornerstone for modern automated packaging systems.
3. Advantages of CCP-FS500
| Advantage | Description |
|---|---|
| High Productivity | Capable of sealing large volumes of cartons quickly and efficiently |
| Consistent Sealing Quality | Ensures uniform tape application on every carton |
| Labor Saving | Reduces manual intervention and operator fatigue |
| Adjustable Carton Compatibility | Can handle different carton lengths, widths, and heights |
| Durable Industrial Design | Long-lasting frame and components suitable for heavy-duty operations |
| User-Friendly Operation | Easy setup and intuitive control panel for operators |
| Safety Features | Emergency stops and protective guards to ensure operator safety |
| Reduced Downtime | Simple maintenance and quick tape replacement for minimal interruptions |
4. Technical Specifications
| Parameter | Specification |
|---|---|
| Model | Left and Right Side Carton Sealing Machine CCP-FS500 |
| Carton Length Range | 150–600 mm |
| Carton Width Range | 120–500 mm |
| Carton Height Range | 100–450 mm |
| Tape Width | 48–60 mm |
| Sealing Mode | Left and Right side adhesive tape |
| Sealing Speed | Up to 35 cartons per minute |
| Power Supply | 220–380V, 50/60 Hz |
| Machine Power | 1.5–2.2 kW |
| Weight | 280–350 kg |
| Dimensions (L×W×H) | 1800×750×1400 mm |
| Operating Temperature | 0–45°C |
| Control Type | Fully automatic PLC control |
5. How CCP-FS500 Works
Step-by-Step Operation:
Carton Feeding: Cartons are loaded onto the conveyor automatically or manually.
Carton Alignment: Adjustable side guides align cartons precisely.
Left and Right Tape Application: Tape heads seal both left and right flaps simultaneously.
Discharge: Sealed cartons exit the machine smoothly to the next stage in the packaging line.
6. Core Components
PLC Control Panel: Allows precise adjustment of speed, carton size, and operational modes.
Tape Heads: Independent left and right tape heads with adjustable tension for precise sealing.
Conveyor System: Smooth and durable belt or chain conveyor to transport cartons.
Protective Guards: Safety panels with emergency stop access.
Frame Structure: Industrial-grade steel or coated frame for durability.
7. Industry Applications
Logistics and Warehousing:
Seals cartons for shipping and storage, ensuring secure transport.
E-commerce Fulfillment:
Supports high-volume packaging operations for online retailers.
Food and Beverage:
Maintains hygienic and reliable sealing for cartons containing consumable products.
Consumer Electronics:
Prevents damage during transport with consistent side sealing.
Pharmaceuticals:
Meets standards requiring uniform and reliable packaging for sensitive items.
8. Installation and Integration
Requirements:
Level concrete floor
Stable power supply (220–380V)
Adequate space for operator access and maintenance
Optional integration with upstream and downstream conveyors
Setup Tips:
Ensure machine base is level
Connect electrical supply according to manufacturer guidelines
Adjust carton guides according to carton dimensions
Train operators on safety and operation protocols
9. Safety Features
Emergency stop buttons
Protective side panels
Sensor detection to prevent jams
Audible alarms for tape or carton issues
Operator Best Practices:
Never reach into moving machinery
Disconnect power before maintenance
Regularly inspect conveyor alignment and tape heads
10. Maintenance Guidelines
| Frequency | Task |
|---|---|
| Daily | Clean tape heads, wipe down conveyor, remove debris |
| Weekly | Lubricate moving parts, inspect rollers, check sensors |
| Monthly | Check motor bearings, calibrate tape tension, inspect electrical connections |
| Yearly | Replace worn parts, perform full operational inspection |
11. Troubleshooting Common Issues
| Issue | Cause | Solution |
|---|---|---|
| Tape Wrinkling | Incorrect tension | Adjust tension roller |
| Misaligned Seals | Carton guides misaligned | Realign guides |
| Machine Jamming | Debris in feed path | Clean feed path and rollers |
| Uneven Tape Application | Worn tape head | Replace tape head |
12. Comparison With Other Machines
| Feature | Semi-Automatic Sealer | CCP-FS500 Fully Automatic |
|---|---|---|
| Operator Requirement | Yes | Minimal |
| Speed | Moderate | High |
| Sealing Consistency | Variable | Uniform |
| Labor Dependency | High | Low |
| Maintenance | Simple | Moderate |
The Left and Right Side Carton Sealing Machine CCP-FS500 is a robust, efficient, and fully automated solution for modern packaging operations. It provides high-speed, consistent sealing from both carton sides, reduces labor dependency, and improves overall packaging quality. Its flexibility, durability, and professional-grade performance make it ideal for logistics, e-commerce, industrial production, and consumer goods packaging lines.
